Page & Layer Options

Page Options

Clicking a page name in the navigation panel list reveals a number of toolbox options.

Icon Description

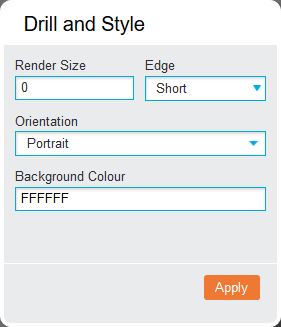

Opens the 'Drill and Style' window, where a selection of page display options are available.

  • Render Size: Allows the scale of the page to be changed without affecting the size of the report. Increasing the Render Size allows more components to be placed on a page.
  • Edge (drop-down list): Specifies whether the Render Size value affect the Long or Short edge of the page.
  • Orientation (drop-down list): Select between a Portrait and Landscape report
  • Background Colour: Enter a colour that will be used in the background of the report. Either enter the required hex code or select from the pop-up colour picker.

Click Apply to save your changes.

Opens a dialog box for renaming the page. Enter the new Name and click Apply to save.

Creates an exact copy of the page below the original one (in the navigation panel), complete with all associated layers and components.
Deletes the selected page when more than one page has been added. If the page contained any components, they are added to a new 'Unused' heading in the navigation panel. This allows all of the configured components to be re-added to the report, if required. To remove the unused components, click the 'Unused' heading and then Remove All under the 'Unused Options' in the toolbox.
Adds an additional layer to the page. Layers allow components and images to overlap, with each layer having its own set of display options.

Layer Options

Clicking a layer name, such as ‘Layer 1’, in the navigation panel reveals the following toolbox options:

Icon Description

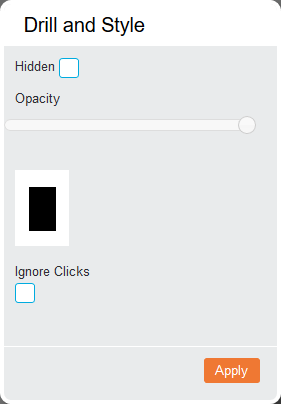

Click Style to open the 'Drill and Style' window, where a selection of layer display options are available.

  • Hidden (checkbox): Enable this to hide the layer, making it only accessible if it is drilled to.
  • Opacity (slider): Alters the visibility of the layer, with the transparency increased by moving the slider to the left.
  • Ignore Clicks (checkbox): Enabling this disables drill through for the layer In Run mode.

Click Apply to save your changes.

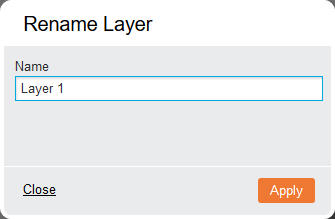

Opens a dialog box for renaming the layer. Enter the new Name and click Apply to save.
